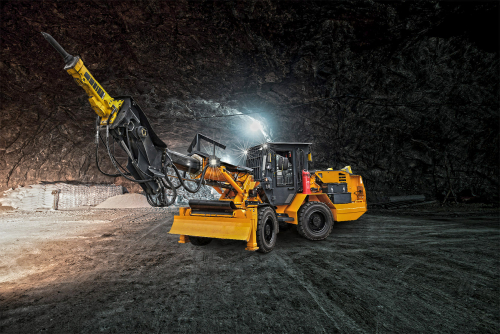

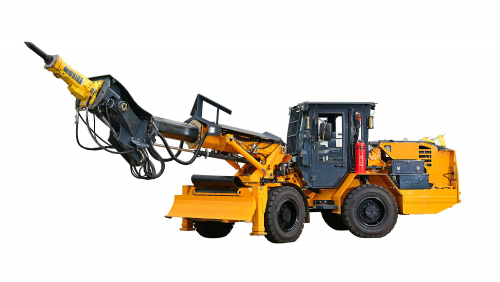

THE NEW PSCALE
Soportes para Techo/Tierra / Roof/Ground Supports
Demensions and weights:
- Length 7.950 mm
- Width 1.970 mm
- Height 2.500/2.950 mm
- Working height 8.000 mm
- Internal radius 2.500 mm
- External radius 4.600 mm
- Operation weight 10.000 Kg
New enclosed cabin design secure:
- Less noise
- Less heat
- Less vibrations
- Less dust
- Relaxed atmosphere
- New option: Pressurized cabin for works in hazard dust areas
- Excellent visibility
- Easy handling
- More cabin features
Optimization engine part:
- New design allows higher air flow
- Repositioning of hydraulic tanks
- Higher cooling capacity
Caterpillar C 4.4 engine:
- Exhaust gas level COM IIIA:
- Power: 97 kW @2.200 rpm’s
- Longitudinal arrangement
New boom design:
- New geometry
- Heavy duty design (material: S700)
- Higher attachment weights up to 400 kg
- Easy exchange of wear parts
Structure optimizations:
- More robust chassis structure for longer life time
- Stronger swiveling bearing for longer life time
- Optimization of the articulation with angular contact spherical plain bearings
Higher performance:
- Increased engine power 30%
- Increased cooling surface 50%
- Increased operation weight 8%
- Increased productive and sensitive
- More efficient air-conditioning
Higher productivity - Paus Display Concept:
- One service display, one operation display
- Possibility to safe working modes
- Adjustment of hammer frequency for more sensible rock handling
- Service intervals (with warnings and errors display)
- Actual data display like oil temperatures, pressures etc.
- Data transfer via WIFI
- Paus Connect Cloud (remote maintenance feature)
Advanced safety:
PLUG AND PLAY RADIO REMOTE CONTROL
- Radio Remote control responder plus receiver
- All Paus Scalers are prepared for plug in solutions
- Operator must be close to the machine to identify scaling areas
- Operator is not in the hazard area, must be in visible contact
- No special network requirements or infrastructure needed
HYBRID TELEOPERATION
- Radio Remote controller with video system
- Multiple displays and Individual display sizes
- No network infrastructure required
- Operator is not in the hazard area, no visible contact necessary
- Low to medium investment
TELE OPERATION
- Full tele remote operation in convenient and safe area
- Full equipped operation seat with paddles, displays and joysticks like to be seated in the scaler
- More productivity due to the possibility to work during shift changes or after short time of a blast
- Eliminate exposure to dust, shrapnel, fumes, and noise
- Network infrastructure is needed
- High investment
- Specious safety cabin environment with solid roof
- ROPS/FOPS tested and certified cabin – tested with 44% more weight than machine weight
- ROPS/FOPS according to CAS
- Battery main switch
- Emergency stop in cabin and at the rear of the machine
- 3P entry
- Dead man switch (option)
- 3P safety belt (option)
- Brake test bottom (option)
- Safety belt monitoring
- New escape function (option)
- Door contact (option)
-Gas detecting system (option)
- Alcohol monitoring system (option)
- Hill start assistance (HAS)
