Producto
MG DOUBLE GIRDER GANTRY CRANE
Elevadores y Equipos de Elevación / Hoist & Hoisting Equipment

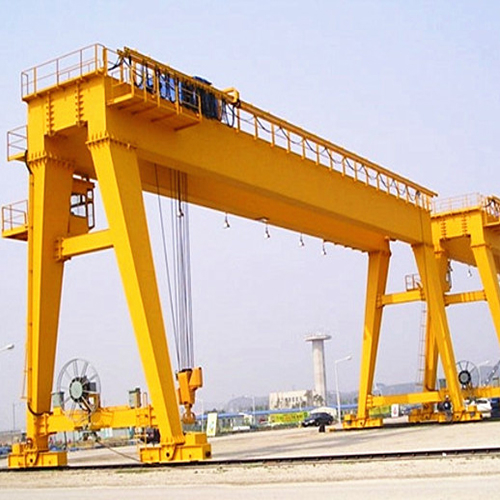

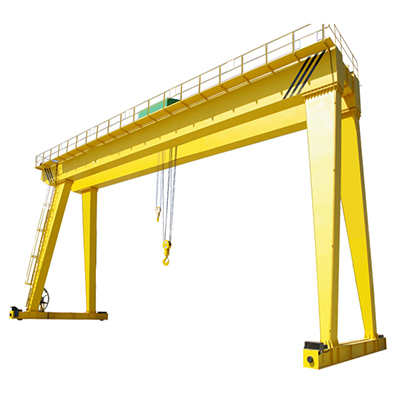

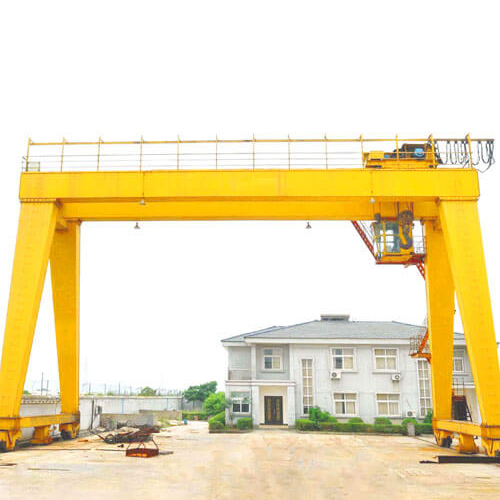

MG Double Girder Gantry Crane
Widely used in workshop, storage, port, hydroelectric power station. Heavy duty gantry crane. Span Length: 12~35 m. Lifting Capacity: 5~500 tons; The working grade : A3-A5; The working temperature:-25℃ to 40℃
About Double Girder Gantry Crane
Design and manufacture according to GB/T 14406 "General gantry crane".

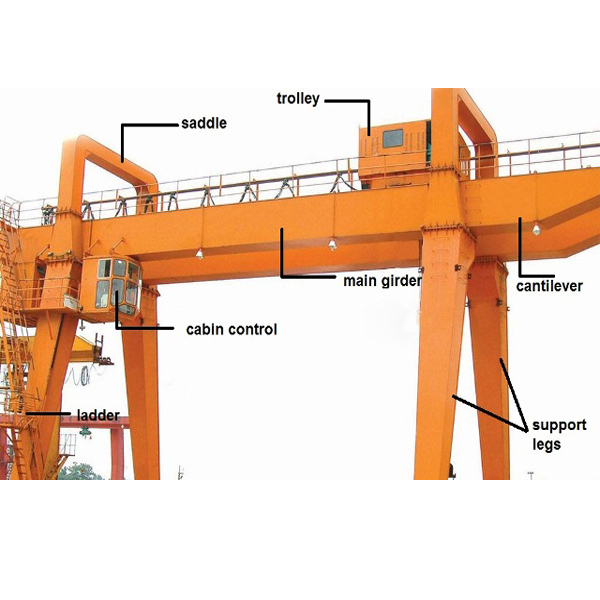

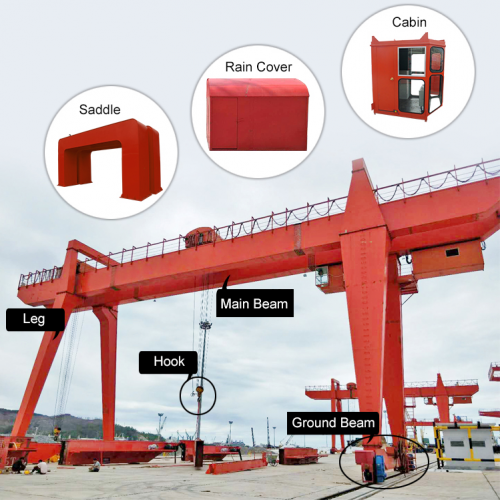

Mainly made up of bridge, trolley, crane traveling mechanism and electric system.
All the procedure is finished in the operating room.
Applies to the open warehouse or rail along for general handling and lifting work.
Also can be equipped with other lifting devices like grab or container spreader or etc. for special work.
Prohibited for high temperature, flammable, explosive, corrosion, overloading, dust or other dangerous operations.
Double Girder Gantry Crane Feature
Our product has lots of excellent core features for hoist industry.
1.Protection
Preventing hook clashing the top, set shields and barriers. Speeding protection, zero pressure protection, the lightning protection
2.Low consumption
Low consumption of total power can reduce the costs, it had remake-able energy-saving effect.
Variable Frequency control make cranes run smoothly.
3.Visual automation
The networking and automation of electric part, such as HIM human-computer interface, remote management of internet of things, electronic anti-shake function and automatic correction function.
4.International brand appliances

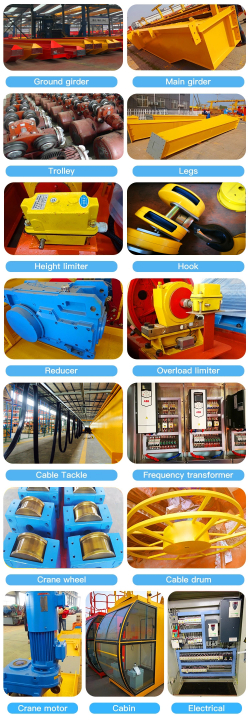

Lifting motors(ABM), traveling motors ABB, Siemens, SEW (Three-in-one type), lectrice are Schneider, SKF bearings
5.Safety feature
Lifting weight limitation, height limitating, rail clamping device. Anti-collision, sound and light alarm devices.
6.Operation Device
Ground control and cabin control,Ground control has handle and remote control, do not need to set up special driver, Users can choose as you need.
