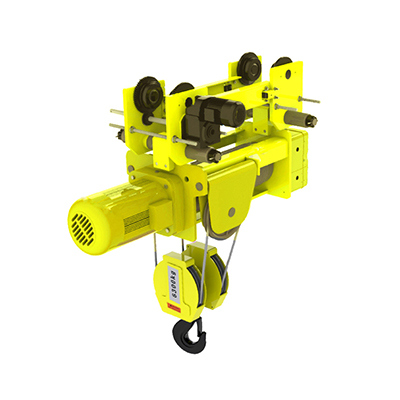

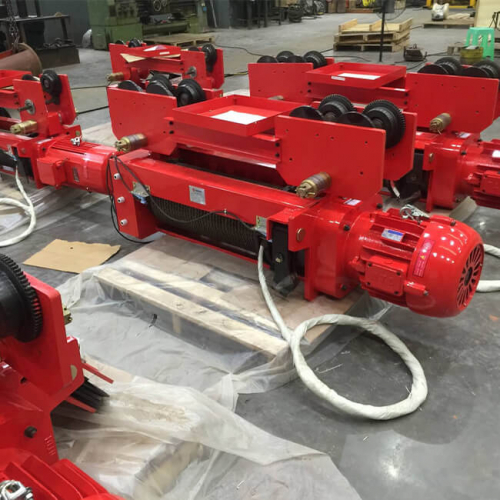

SH MODEL ELECTRIC WIRE ROPE HOIST(4/1 ROPE REEVING

Elevadores y Equipos de Elevación / Hoist & Hoisting Equipment

This kind of wire rope hoist has newest designing with quadrate outline, modularized construction, good unitized capacity. The
fundamental mode chang combine is very convenient and multiform. The special drive composition melthod is very stationary which
save the usual long transmission shaft. The reducer use planetray speed-down drive which have high effective, low yawp long using
life. Unique column rotor-taper breaking wheel motor with low yawp, disk reliable. With the advance guide rope technology from
overseas, unit is very reliable and safty. High precision and super mechanical spin limiter high quality control electric
component with low malfunction. The products are complied with the up to date international standard.
Sheel:
1. The JCYC electric hoist is made of light aluminum alloy shell, light but hard.
2. With cooling fin, easy and quick Bring
the Heat out.
Break System:
1. Side Magnetic Braking Device, ensure lock the hoist.
2. Mechanical braker, Dual braking system,much safer. Limit Switch: With up & down Limit Switch,to prohibit the chains from exceeding for safety.
Chain:
Originally imported from Japan and Germany. Anti-Rust and Anti-corrosion.
Electromagnetic contactor:
1. With Schneider Electric (TESSIC), can be used safely under high frequency.
2. Can be installed Variable-Vrequency Drive (VFD Electric) Can be suitable for Single Phase Power supply. Inverse phase sequence protecting device: It is sepcial electrical installation which controls the circuit not to work in case of wiring error in the power supply.
Gear:
The gear made of alloy steel, Through the heat treatment.
Level of Protection Grade(IP Grade):
1. Hoist IP Grade: IP54
2. Push Buttom IP Grade: IP65 Power supply: All kinds of voltage can be custom-made.
220V-660V, 50HZ/60HZ, 1P/3P.
Working Grade：M5
