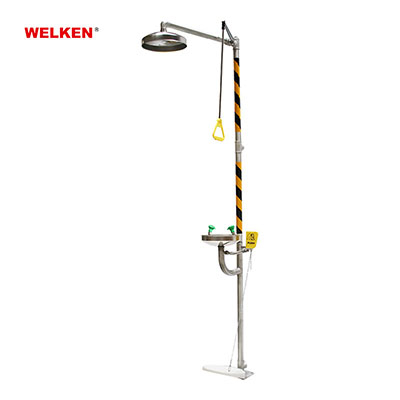

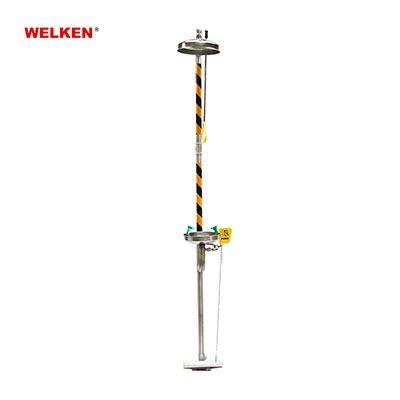

FOOT PEDAL STAINLESS STEEL COMBINATION EYE WASH SHOWER

Aseo y Seguridad Industrial / Cleaning and Industrial Safety

Head: 10” stainless steel
Eye Wash Nozzle: Green ABS spraying with 10” waste water recycle bowl
Shower Valve: 1” 304 stainless steel ball valve
Eye Wash Valve: 1/2” 304 stainless steel ball valve
Supply: 1 1/4" FNPT
Waste: 1 1/4" FNPT
Eye Wash Flow ≥11.4 L/Min, shower flow≥75.7 L/Min
Hydraulic Pressure: 0.2MPA-0.6MPA
Original Water: Drinking water or filtered water
Using Environment: Places where has hazardous substance splashing, such as chemicals, hazardous liquids, solid, gas and so on.
Special Note: If the acid concentration is too high, recommend to use 316 stainless steel.
When using ambient temperature below 0℃, use antifreeze eye wash.
The eye wash & shower is made of high quality 304 stainless steel.
