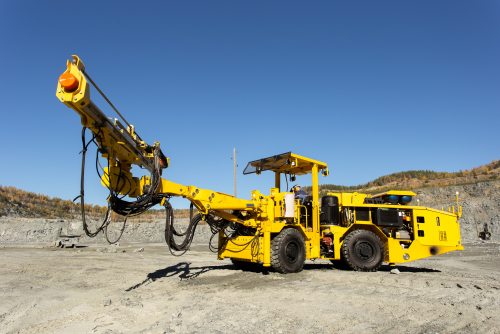

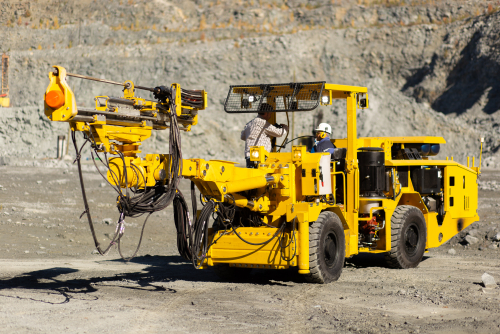

UNDERGROUND FACE DRILL RIG DFB1
Jumbos de perforación / Jumbo drills
We manufacrure the drill rig which is used for horizontal, vertical and inclined boreholes drilling and bolting in underground mining. The rig is covering the cross sections up to 40 sq.m.
Drilling cross sections 40 m²
Hole size 45 - 89 mm
Hole length (max.) 3420 mm
Machine dimensions
Length 11900 mm
Widght 1870 mm
Height (min.) 2140 mm
Weight 15 500 kg
Feeder: Telescopic
Feed drive: Hydraulic
Feed force 25 kN
Available length of rods 6, 8, 10, 12 feet
Feeder length 3500 / 5330 mm
Hole length 1590 / 3420 mm
Feeder Weight 600 kg
Please look through all the specifications in the technical data sheet attached.
