Intelligent Frequency Conversion Scraping Device
EQUIPOS Y SISTEMAS DE TRANSPORTE
Product introduction:

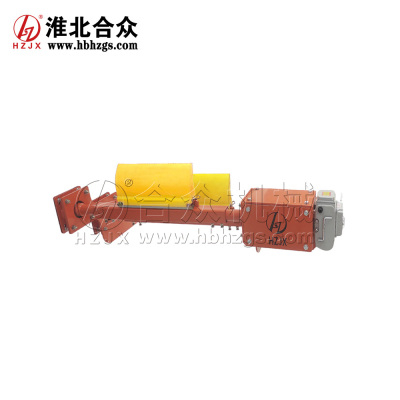

The intelligent variable frequency scraper device is a system that integrates mechanical and electrical components and can be used with a power supply. The working process of this system can be determined by PLC automatically controls the operation, and can also be operated manually or remotely.
The design feature of the intelligent variable frequency scraping device is the addition of an intelligent electronic control system, which realizes automatic adjustment of blade pressure and blade wear.Automated operations such as automatic detection and alarm. It has the characteristics of wear resistance, corrosion resistance, no damage to the belt, high degree of automation, constant blade pressure and high cleaning efficiency.Good fruit, long blade life, remote communication with the centralized control room, simple structure, easy to install, easy operation and maintenance, safe and reliable operation, and complete Automatic protection function and low production cost.
The intelligent frequency conversion scraper device uses PLC and touch screen for pressure detection, display, setting and control; it uses the angle sensor inside the actuator Detect the degree of blade wear and send out an alarm signal. Blade pressure can be set arbitrarily within the allowed range via the touch screen.
Product Usage:

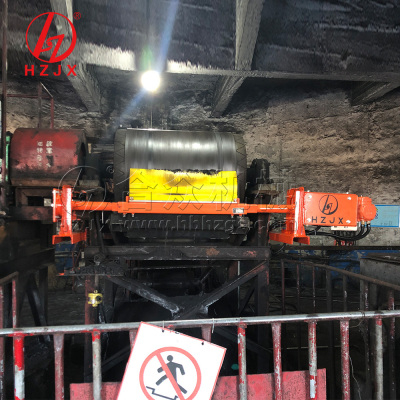

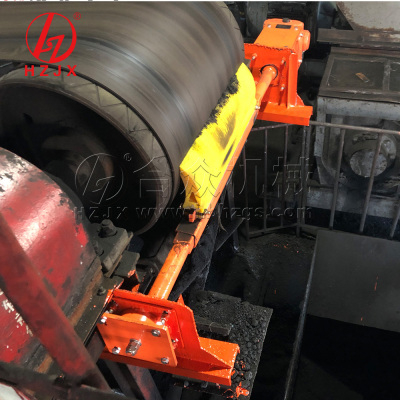

It is suitable for cleaning residual materials on the surface of high-speed belts at the discharge drum of high-speed, large-capacity, long-distance belt conveyors to solve the problem of residual materials in the discharge drum.The environmental pollution caused by spillage in the return section of the conveyor and the deviation of the return belt caused by residual materials sticking to the rollers.
It can be widely used in coal mines, power plants, cement plants, coal preparation plants, ports, steel, coking, non-ferrous metals and other fields.
Features:
This product is a new series of intelligent products independently developed by our company.An intelligent electronic control system is added to the traditional cleaner to realize automatic adjustment of blade pressure and automatic detection of blade wear, text prompts and audible and visual alarms.It also comes with remote operation monitoring, which can be managed on-site or centralized monitored, and the equipment status can be grasped in time.

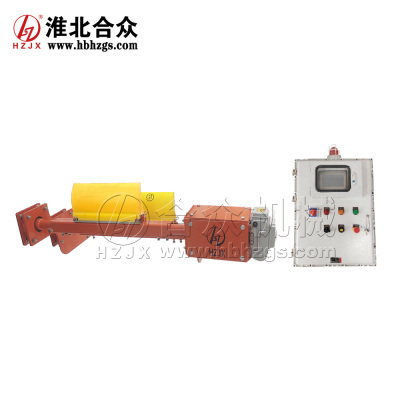

The intelligent variable frequency scraper device takes high-reliability PLC as the core and is equipped with an explosion-proof electric control box, explosion-proof torque sensor, explosion-proof electric actuator and intrinsically safe output power supply. The equipment can operate in harsh working environments or environments with explosive gases and dust. normal work.
The protection function is complete. When a frequency conversion failure occurs or the blade wear exceeds the limit, it can stop running immediately and self-diagnose the fault type. The touch screen has corresponding text prompts and audible and visual alarms.
The intelligent variable frequency scraping device has two control modes: manual and automatic. During debugging or when the equipment fails, you can select the "manual" operation mode.Mode, under normal working conditions, you can select the "automatic" mode, which requires no human operation during normal working, fully realizes automatic continuous work, and improves work efficiency.
The blade of the intelligent frequency conversion scraper device is made of special modified polymer polyurethane. It has the characteristics of flame retardant and antistatic, high wear resistance, high elasticity, acid and alkali resistance, low friction coefficient, etc., and will not cause damage to the conveyor belt. ,long lasting.
The blade does not require manual adjustment during use. The blade compensation can be automatically adjusted according to the initial set constant torque, which can effectively clean the residual material on the surface of the conveyor belt, reduce manual labor, and improve the on-site working environment.
