Intelligent Return Scraper Device
EQUIPOS Y SISTEMAS DE TRANSPORTE
Product Usage:
It is suitable for cleaning, recycling and secondary use of sticky materials on the return belt of the belt conveyor head, especially for cleaning worn and pitted conveyor belts, as well as wet materials and materials with high water content. It perfectly solves the problems of environmental pollution caused by residual materials spilling along the belt and belt deviation caused by materials sticking to the rollers.
It can be widely used in coal mines, power plants, cement plants, coal preparation plants, ports, steel, coking, non-ferrous metals and other fields.
Features:

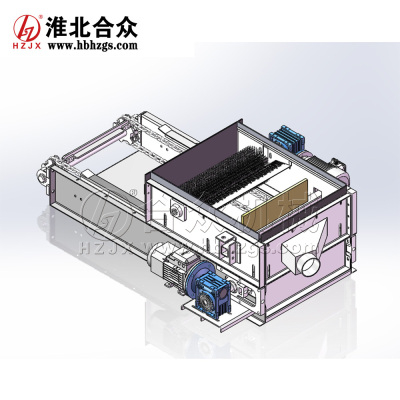

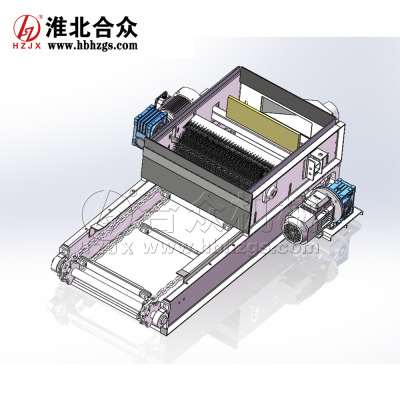

The intelligent return scraping device mainly consists of a cleaner, a recycling machine, an intelligent centralized control box, etc.
The recycling machine uses high-strength mining chains and sprockets, and the scraper uses NM500 wear-resistant steel plates, which ensures stable operation and long service life.
The cleaner is equipped with a scraper according to the material type, humidity, etc. The dry material uses a roller brush cleaner with wear-resistant nylon wire arranged in a spiral to clean cleaner. For wet materials, a staggered scale cleaner can be used to adapt to the unevenness of the belt surface and better fit the conveyor belt to clean sticky materials. Needle use different combinations of cleaning solutions for different materials.
The intelligent centralized control box can be controlled by PLC and touch screen, and adopts a variety of control modes, including local mode, remote direct start mode,Remote time control mode better adapts to on-site use needs.
Easy installation, strong applicability, modular combination design.
